AXI2APB Bridge IP

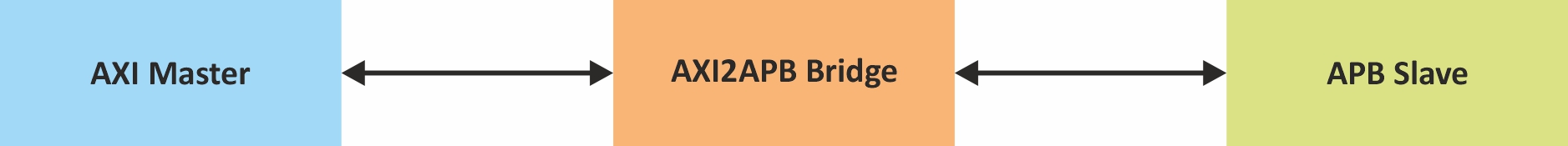

Truechip's AXI2APB IP provides chip designers and architects, an efficient way to connect AXI & APB based IPs with reduced latency, power, and area.

Key Benefits

• Available in native Verilog (RTL)
• Lintin, Synthesis, CDC, RDC are cleaned up.
• Verified with an expert team using comprehensive and Regression Test Suites.
• Consistency of interface, installation, operation, and documentation across all our IPs
• Easy GUI based integration and configuration technique
• 24X5 customer support
• Unique and customizable licensing models

Features

• Support AMBA 5/4/3/2 AHB to APB Protocol conversion
• Interversion Transfer conversion like AHB5 to APB4
• Port data width can be different.
• Apart from data width, other protocol-supported signals can also have different widths.
• Support all type of transfers
• Early response also possible for write transfer
• Support different phase shifted frequencies for Master and Slave
• Clock enable disable mechanism
• Support logical -physical address conversion
• Both little & high endianness is supported
• Secure Transfer
• Support back-to-back transfers

Deliverables

• Bridge IP
• IP generator & config tool
• Verilog Test Environment with Verilog Testcases
• IP analysis reports
  • Linting report
  • Synthesis report
• IP-XACT RDL generated address map
• Simulation script
• IP Block Guide
• Quick Start Guide
