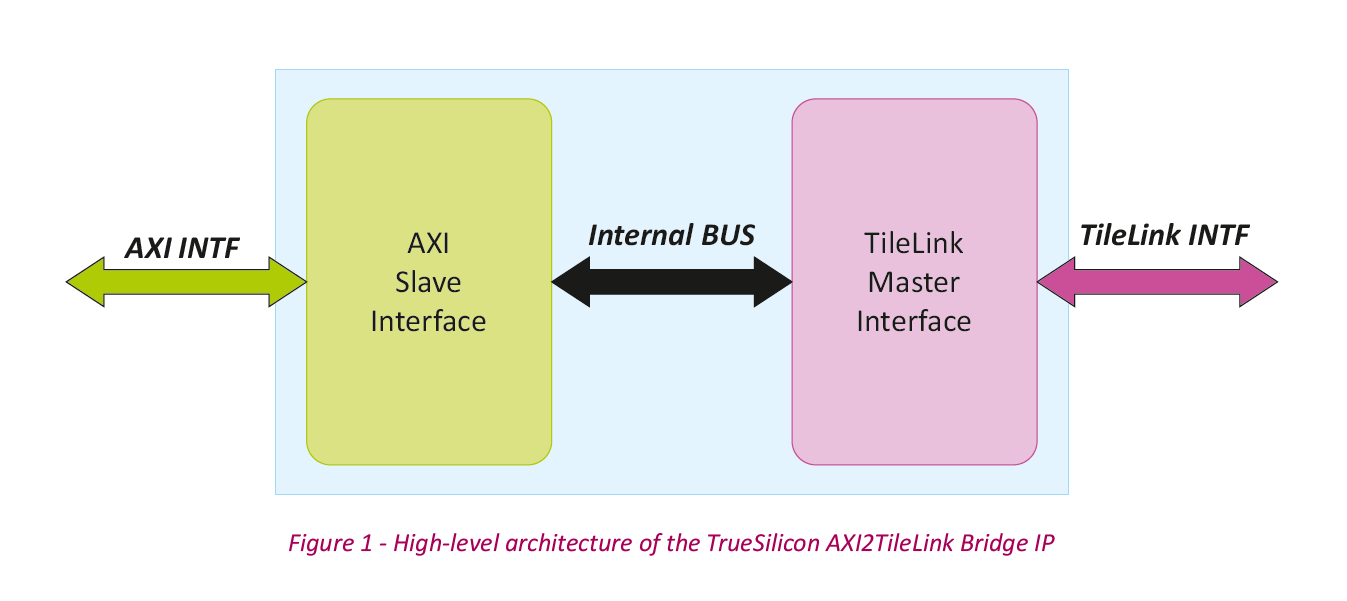

The AXI2TileLink Bridge is a high-performance, synthesizable IP designed to enable seamless interoperability between AMBA AXI-based subsystems and TileLink-based components in modern SoC architectures. Acting as a protocol translation layer, the bridge converts AXI channel-based transactions (AW, W, AR, R, B) into TileLink request (A) and response (D) messages, allowing efficient integration of heterogeneous interfaces within a unified system environment.

The bridge supports comprehensive protocol conversion while preserving transaction semantics and data integrity. AXI burst transactions are translated into TileLink multi-beat operations, with
accurate mapping of burst length, data width, and write strobes into TileLink transfer size and byte masks. This ensures correct data alignment and efficient bandwidth utilization across differing protocol requirements. Additionally, AXI transaction IDs are mapped to TileLink source fields, enabling reliable tracking and association of requests and responses.

To meet AXI ordering requirements, the bridge incorporates ID tracking and response reordering mechanisms, ensuring that TileLink responses are aligned with AXI transaction ordering rules. Support for multiple outstanding transactions is provided through in-flight tracking, enabling high concurrency and improved throughput. Configurable buffering and flow control between request and response paths further enhance pipeline efficiency and mitigate backpressure effects.

The architecture includes flexible data width adaptation, supporting both upsizing and downsizing between AXI and TileLink interfaces, along with beat packing and unpacking to optimize performance across varying data widths. TileLink response and error signaling are translated into AXIcompliant response codes, ensuring consistent and protocol-compliant error handling.

For integration in complex SoC environments, the bridge provides optional clock domain crossing (CDC) support using asynchronous FIFOs, enabling safe data transfer across different clock domains. It also supports flexible reset domain handling, allowing synchronization or isolation of reset signals to improve system robustness and fault isolation. Delivered as a configurable RTL IP optimized for power, performance, and area (PPA), the AXI2TileLink Bridge integrates seamlessly into heterogeneous SoC designs. By combining accurate protocol conversion, robust ordering management, concurrency support, and flexible data handling, it provides a reliable and production-ready solution for bridging AXI and TileLink ecosystems in nextgeneration
embedded and high-performance platforms.
