OVERVIEW

The TrueSilicon SPI Controller IP is a serial communication interface within system-on-chip (SoC) architectures, designed to enable efficient and flexible communication between host processors and SPI-compatible peripheral devices. The IP integrates seamlessly into AMBA-based systems using an APB (Advanced Peripheral Bus) interface for configuration and control register access, ensuring lightweight integration into microcontroller and SoC environments

The controller supports master mode operation and is compatible with all four SPI modes through programmable clock polarity (CPOL) and clock phase (CPHA) settings. With configurable clock generation logic derived from the system clock, the SPI Controller supports a wide range of operating frequencies to accommodate diverse peripheral requirements

TrueSilicon's SPI Controller IP provides full-duplex communication capability, enabling simultaneous transmission and reception of data via separate MOSI and MISO lines. Programmable data frame sizes allow flexible transaction formatting, making the controller suitable for command-based flash access, sensor interfacing and streaming data applications

This IP controller supports integrated multi-chip select which is programmable via APB registers, allowing connection up to 16 multiple SPI slave devices without additional external logic. The controller also incorporates transmit and receive FIFO buffers for data handling. Configurable interrupt generation mechanisms allow to send status FIFO events, ensuring efficient handling of high-speed data transfers. The fully synchronous RTL design ensures clean clock-domain operation, predictable timing behaviour, and straightforward static timing analysis (STA). The architecture is optimized for power, performance, and area (PPA), making it suitable for a wide range of technology nodes and applications

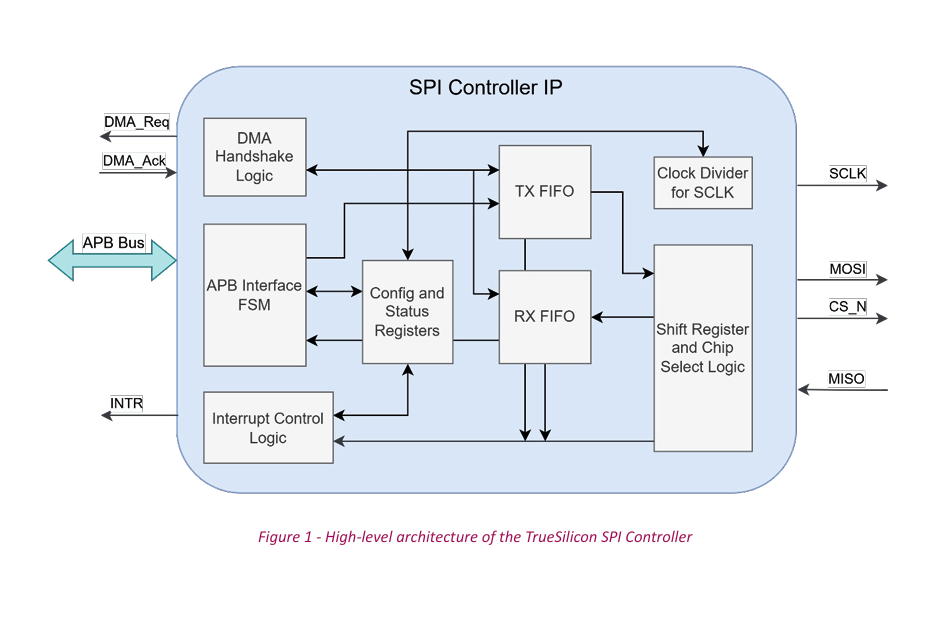

Figure 1 depicts the high-level architecture of the TrueSilicon SPI Controller IP, including the APB configuration interface, clock divider unit, transmit and receive shift registers, FIFO buffers, and programmable chip select generation logic.

With all these design attributes, the TrueSilicon SPI Controller IP delivers a scalable, low-risk, and integration-ready serial communication solution. The IP accelerates SoC development cycles, reduces system complexity, and enables reliable high-speed peripheral connectivity across embedded and compute-intensive applications
