OVERVIEW

The TrueSilicon UART Controller IP serves as a reliable and configurable asynchronous serial communication interface within system-on-chip (SoC) architectures. It enables robust full-duplex communication between processors and external devices such as debug consoles, modems, Bluetooth modules, GPS receivers, and industrial interfaces.

The controller integrates seamlessly into AMBA-based systems using an APB (Advanced Peripheral Bus) interface for configuration and status monitoring. The APB interface provides a lightweight, low-power mechanism for programming operational parameters including baud rate, data format, interrupt control, and FIFO configuration. Its modular design minimizes glue logic and enables rapid deployment across a wide range of embedded platforms.

The UART Controller supports programmable baud rate generation, configurable data frame formats (5–8 data bits), parity options (even/odd/none), and selectable stop bits. With integrated transmit and receive FIFOs, the controller minimizes CPU overhead and supports high throughput communication while maintaining real-time responsiveness.

The TrueSilicon UART Controller IP incorporates comprehensive error detection mechanisms, including parity error, framing error, overrun error, and break condition detection, ensuring reliable communication even in noisy or high-speed environments. Integrated interrupt generation supports transmit FIFO empty, receive FIFO full, transfer complete, and error events, enabling efficient CPU servicing and reduced software overhead. These features collectively enhance system robustness while accelerating integration and time-to-market.

The fully synchronous RTL architecture ensures clean timing closure, simplified static timing analysis (STA), and predictable system integration. Optimized for power, performance, and area (PPA), the TrueSilicon UART Controller IP is suitable for microcontrollers, embedded SoCs, industrial controllers, and high-reliability systems.

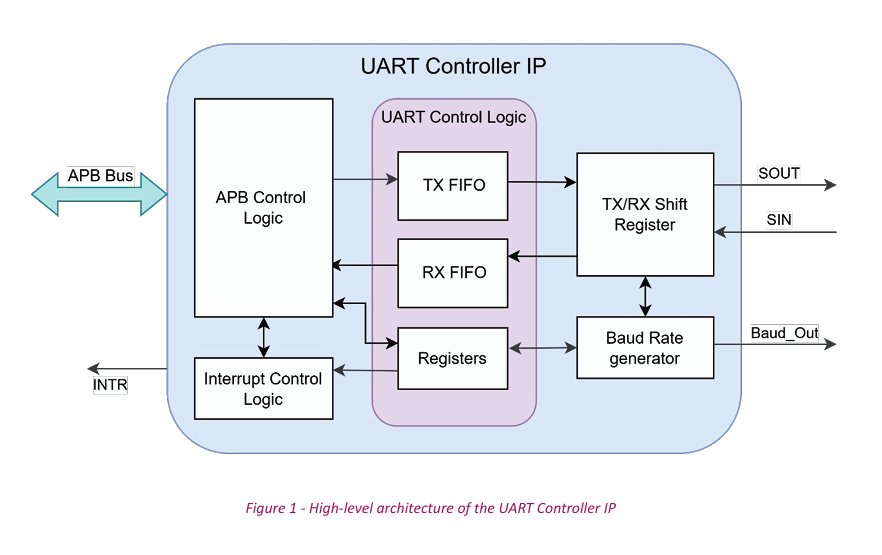

Figure 1 depicts the high-level architecture of the UART Controller IP, highlighting the APB configuration interface, baud rate generator, transmit and receive data FIFOs, Shift registers and interrupt controller.

With all its design attributes, the TrueSilicon UART Controller IP delivers a production-ready serial communication solution optimized for embedded and performance-critical applications.
